EMC Lab

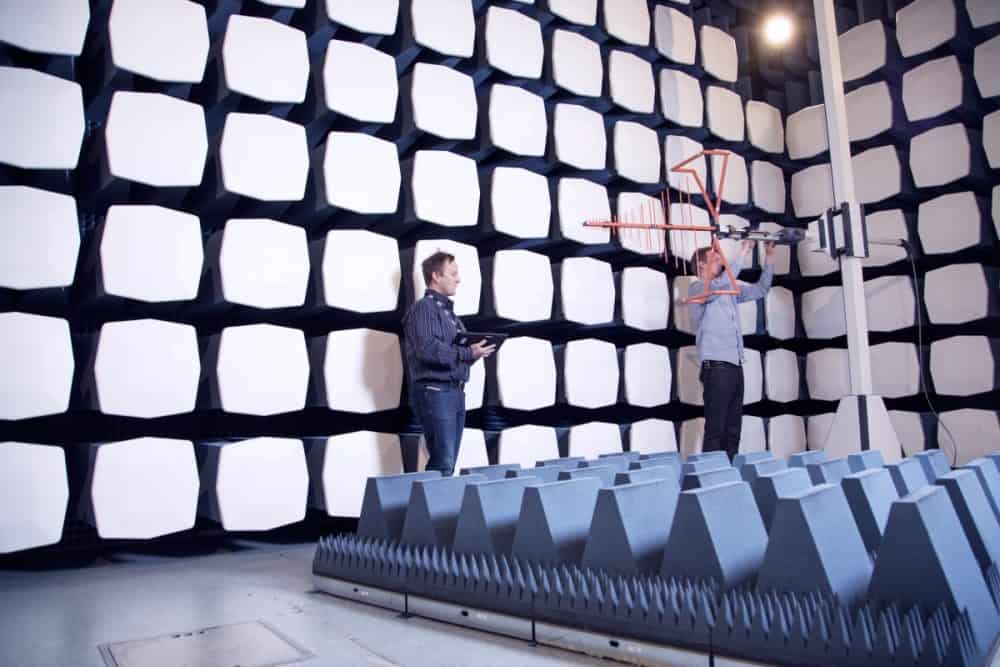

The TESTiLABS EMC test facilities includes a 3 meter test range semi-anechoic chamber with an interference shielded control room.

The automated test environment consists of antenna scanning masts, turntable, tilted test table, RF switching unit with required filtering and other related test equipment. All these are managed with one commercial EMC test software.

A separate RF shielded room is used for immunity tests and can be also used for sensitive measurements requiring an interference shielded environment.

Our GTEM750 chamber provides a measurement environment for certain special cases like radiated immunity with extra high RF field strengths.

We can provide accredited EMC testing services according to the following standards:

  • EMC/RF-testing
    • EN 301 489-1, EN 301 489-3
    • EN 301 489-17, EN 301 489-19
    • EN 301 489-34, EN 301 489-52
    • IEC/EN 61000-3-2, IEC/EN 61000-3-3
    • IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-11
    • IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
    • CISPR 11 / EN 55011, CISPR 22 / EN 55022, CISPR 24 / EN 55024
    • CISPR 32 / EN 55032 Exclusions: TVs, set top boxes
    • IEC/EN 61326-1, IEC/EN 61326-2-1, IEC/EN 61326-2-2, IEC/EN 61326-2-3, IEC/EN 61326-2-4, IEC/EN 61326-2-5
    • 3GPP TS 51.010-1 subclauses 12.1 and 12.2
    • EN 300 220 (EN 300 330-2, 4.2.2 Unwanted emissions in the spurious domain (EN 300 330-1, 5.9 Unwanted emissions in the spurious domain)
    • EN 300 328 4.3.1.10 Transmitter unwanted emissions in the spurious domain 4.3.1.11 Receiver spurious emission
    • EN 300 330 4.3.8 Transmitter radiated spurious domain emission limits < 30 MHz 4.3.9 Transmitter radiated spurious domain emission limits > 30 MHz 4. 4.2 Receiver spurious emissions
    • EN 300 440 4.3.5 Spurious radiations
    • EN 303 413 5.5 Receiver spurious emissions test
    • ETSI EN 301 511 clauses 5.2.16 and 5.2.17
    • ETSI EN 301 893 Radiated Tx and Rx spurious only Restriction: measurement frequency up to 18 GHz
    • ETSI EN 301 908-1 Radiated Emissions UE (Devices falling under -2 and – 13)
