Beamforming Antenna Test

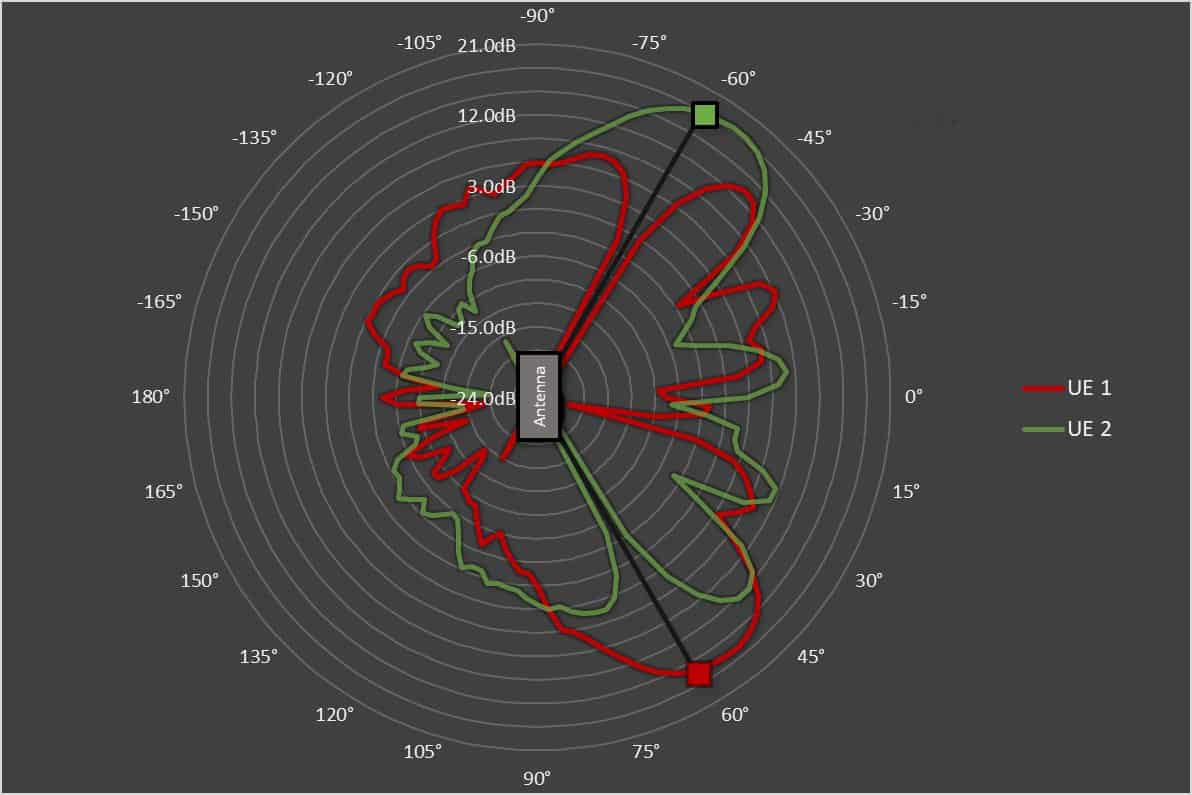

Antenna Beam Forming diagram

Beamforming Antenna Testing

Beamforming tehnology is used in 4G & 5G cellular, military and also in WiFi (IEE 802.11) radios.

TESTiLABS offers 3D antenna pattern testing for beamforming antennas operating at 600 MHz to 6 GHz range. Testing is performed in an anechoic chamber utilizing near to far field transformation methodology.

Test results include:

  • Gain
  • Beamwidth
  • Azimuth Beam squint
  • Cross-polarization ratio
  • Tilt accuracy
  • Front to back ratio
  • First upper side lobe suppression
  • Efficiency
